[ESXi] VMware 가상머신을 AWS로 마이그레이션 하기
VMware 가상머신을 AWS로 마이그레이션
AWS Server Migration Service를 사용하여 VMware에서 AWS로 마이그레이션을 진행해 보겠습니다.
1. 마이그레이션 허브 -> aws로 서버 마이그레이션을 선택합니다
3. 서버 추가하기

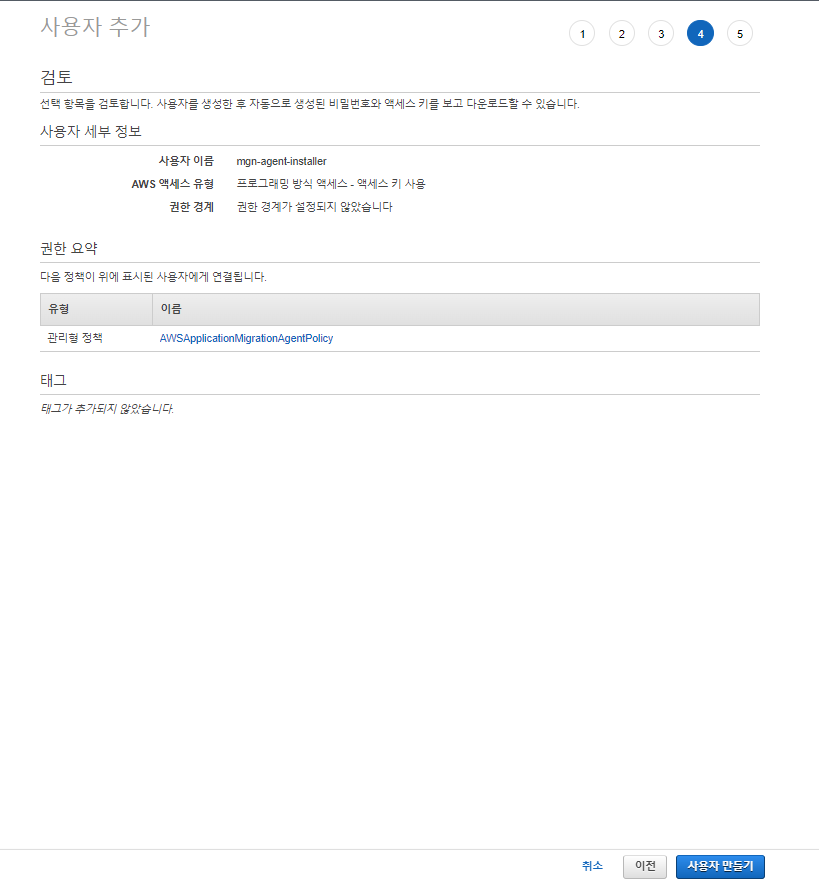

- migration iam user 추가하기
- 생성한 iam user 의 엑세스키 생성 후 생성할 서버에 입력합니다.
4. 아래 명령어를 ESXi 가상 서버에 입력하면 aws-replication-installer-init.py 파일을 다운로드 및 설치를 진행합니다.
- wget -O ./aws-replication-installer-init.py https://aws-application-migration-service-us-east-1.s3.us-east-1.amazonaws.com/latest/linux/aws-replication-installer-init.py
- sudo python3 aws-replication-installer-init.py --region us-east-1
aws-replication-installer-init.py
import json
import os
import shutil
import socket
import stat
import subprocess
import sys
import tempfile
import hashlib
from optparse import OptionParser, BadOptionError
INSTALLER_LINUX_FILENAME_64 = "aws-replication-installer-64bit"
INSTALLER_LINUX_FILENAME_32 = "aws-replication-installer-32bit"
INSTALLER_BUCKET_MAP = """{"ap-south-1": ["aws-application-migration-service-ap-south-1", "aws-application-migration-service-hashes-ap-south-1", "latest"], "ap-northeast-2": ["aws-application-migration-service-ap-northeast-2", "aws-application-migration-service-hashes-ap-northeast-2", "latest"], "ap-east-1": ["aws-application-migration-service-ap-east-1", "aws-application-migration-service-hashes-ap-east-1", "latest"], "eu-west-2": ["aws-application-migration-service-eu-west-2", "aws-application-migration-service-hashes-eu-west-2", "latest"], "ap-northeast-3": ["aws-application-migration-service-ap-northeast-3", "aws-application-migration-service-hashes-ap-northeast-3", "latest"], "us-west-1": ["aws-application-migration-service-us-west-1", "aws-application-migration-service-hashes-us-west-1", "latest"], "ca-central-1": ["aws-application-migration-service-ca-central-1", "aws-application-migration-service-hashes-ca-central-1", "latest"], "sa-east-1": ["aws-application-migration-service-sa-east-1", "aws-application-migration-service-hashes-sa-east-1", "latest"], "eu-north-1": ["aws-application-migration-service-eu-north-1", "aws-application-migration-service-hashes-eu-north-1", "latest"], "ap-southeast-1": ["aws-application-migration-service-ap-southeast-1", "aws-application-migration-service-hashes-ap-southeast-1", "latest"], "us-east-2": ["aws-application-migration-service-us-east-2", "aws-application-migration-service-hashes-us-east-2", "latest"], "eu-west-1": ["aws-application-migration-service-eu-west-1", "aws-application-migration-service-hashes-eu-west-1", "latest"], "ap-southeast-2": ["aws-application-migration-service-ap-southeast-2", "aws-application-migration-service-hashes-ap-southeast-2", "latest"], "us-west-2": ["aws-application-migration-service-us-west-2", "aws-application-migration-service-hashes-us-west-2", "latest"], "eu-central-1": ["aws-application-migration-service-eu-central-1", "aws-application-migration-service-hashes-eu-central-1", "latest"], "ap-northeast-1": ["aws-application-migration-service-ap-northeast-1", "aws-application-migration-service-hashes-ap-northeast-1", "latest"], "us-east-1": ["aws-application-migration-service-us-east-1", "aws-application-migration-service-hashes-us-east-1", "latest"], "eu-west-3": ["aws-application-migration-service-eu-west-3", "aws-application-migration-service-hashes-eu-west-3", "latest"], "eu-south-1": ["aws-application-migration-service-eu-south-1", "aws-application-migration-service-hashes-eu-south-1", "latest"], "me-south-1": ["aws-application-migration-service-me-south-1", "aws-application-migration-service-hashes-me-south-1", "latest"], "af-south-1": ["aws-application-migration-service-af-south-1", "aws-application-migration-service-hashes-af-south-1", "latest"]}"""
DOCS_LINK = "https://docs.aws.amazon.com/mgn/latest/ug/Troubleshooting-Agent-Issues.html#Error-Installation-Failed"
INSTALLER_VERSION = "1.0.0"
class CustomOptionParser(OptionParser):
def _process_long_opt(self, rargs, values):
try:
OptionParser._process_long_opt(self, rargs, values)
except BadOptionError:
pass
def _process_short_opts(self, rargs, values):
try:
OptionParser._process_short_opts(self, rargs, values)
except BadOptionError:
pass
def print_help(self, file=None):
script_name = os.path.basename(__file__)
help_text = (
"""
usage: %s [-h]
[--aws-access-key-id AWS_ACCESS_KEY_ID]
[--aws-secret-access-key AWS_SECRET_ACCESS_KEY]
[--aws-session-token AWS_SESSION_TOKEN]
[--region REGION] [--no-prompt]
[--force-volumes] [--devices DEVICES]
[--endpoint ENDPOINT]
[--s3-endpoint S3_ENDPOINT]
[--tags KEY=VALUE [KEY=VALUE ...]]
optional arguments:
-h, --help show this help message and exit
--aws-access-key-id AWS_ACCESS_KEY_ID
The AWS Access Key ID you generated when creating an IAM User for installing the
AWS Replication Agent or when creating temporary credentials.
--aws-secret-access-key AWS_SECRET_ACCESS_KEY
The AWS Secret Access Key you generated when creating an IAM User for installing the
AWS Replication Agent or when creating temporary credentials.
--aws-session-token AWS_SESSION_TOKEN
The AWS session token generated when creating temporary credentials.
--region REGION Name of the AWS Region into which you want to migrate your source server in the standard
format (For example: us-east-1)
--no-prompt This parameter will run a non-interactive installation.
--force-volumes This parameter must be used with the --no-prompt parameter. This parameter will cancel the
automatic detection of physical disks to replicate. You will need to specify the exact
disks to replicate using the --devices parameter.
--devices DEVICES
This parameter specifies which specific disks to replicate. This parameter does not
function when your Source servers are located in AWS. Devices are separated by commas. For
example: /dev/sda,/dev/sdb. It is required when --no-prompt and --force-volumes are
present.
--endpoint ENDPOINT Use this parameter to specify the Private Link endpoint you created for Application
Migration Service if you do not wish to open your firewall ports to access the default
Application Migration Service endpoint.
--s3-endpoint S3_ENDPOINT
Use this parameter to specify a VPC endpoint you created for S3 if you do not wish to open
your firewall ports to access the default S3 endpoint. Used only during the installation
process.
--tags KEY=VALUE [KEY=VALUE ...]
Use this parameter to add resource tags to the Source server. Use a space to separate each
tag (For example --tags tag1=val1 tag2=val2 tag3=val3)
Note: This flag may only be used when adding new source servers to MGN. You cannot use the
--tags flag to modify tags of existing servers.
""" % script_name
)
print(help_text)
# Though it would be cleaner to use namedtuple here, python 2.4 does not support it, so we use a class
class DF(object): # pylint: disable=too-few-public-methods
def __init__(self, filesystem, blocks, used, available, capacity, mounted_on):
self.filesystem = filesystem
self.blocks = blocks
self.used = used
self.available = available
self.capacity = capacity
self.mounted_on = mounted_on
IS_PYTHON2 = sys.version_info[0] == 2
if IS_PYTHON2:
_input = raw_input
else:
_input = input
REQUIRED_DISK_SPACE = 500 * 1024 * 1024
def main(region, s3_endpoint):
print("The installation of the AWS Replication Agent has started.") # pylint: disable=superfluous-parens
if IS_PYTHON2:
from urllib2 import urlopen # pylint: disable=no-name-in-module,import-error
if sys.maxint > (2 ** 31): # pylint: disable=no-member
arch = 64
else:
arch = 32
else:
import struct
from urllib.request import urlopen # pylint: disable=no-name-in-module,import-error
if struct.calcsize("P") * 8 == 64:
arch = 64
else:
arch = 32
if arch == 32:
filename = INSTALLER_LINUX_FILENAME_32
else:
filename = INSTALLER_LINUX_FILENAME_64
try:
handle_noexec_tmp()
except Exception: # pylint: disable=broad-except
pass
doing = ""
reading_url = ""
try:
if os.environ.get('AWS_REGION'):
region = os.environ.get('AWS_REGION')
while not region:
region = _input("AWS Region Name: ").strip()
bucket_map = json.loads(INSTALLER_BUCKET_MAP)
doing = "checking disk free space"
if not check_free_space(REQUIRED_DISK_SPACE):
print(
"""Installation failed.
The source server does not have enough free disk space to install the AWS Replication Agent.
Free up the required space and re-start theinstallation."""
)
return -1
doing = "preparing installer download url"
if region not in bucket_map:
print("Region " + region + " is not supported by this version of the AWS Replication Agent installer")
return -1
bucket_name, hash_bucket_name, bucket_path = bucket_map[region]
netloc = bucket_name + ".s3." + region + ".amazonaws.com"
url = "https://" + netloc + "/" + bucket_path + "/linux/" + filename
hash_netloc = hash_bucket_name + ".s3." + region + ".amazonaws.com"
hash_url = "https://" + hash_netloc + "/" + bucket_path + "/linux/" + filename + ".sha512"
doing = "downloading installer"
if s3_endpoint:
original_getaddrinfo = socket.getaddrinfo
def getaddrinfo(hostname, *args):
return original_getaddrinfo(s3_endpoint if hostname in [netloc, hash_netloc] else hostname, *args)
socket.getaddrinfo = getaddrinfo
reading_url = url
content = urlopen(url).read()
reading_url = hash_url
content_hash = urlopen(hash_url).read().strip()
if hashlib.sha512(content).hexdigest().encode() != content_hash:
print(
"""Installation failed
Failed verifying the AWS Replication Agent file contents
Learn more about connectivity issues in our documentation at """
+ DOCS_LINK
)
return -1
open(filename, "wb").write(content)
doing = "preparing installer to run"
currentStat = os.stat(filename).st_mode
os.chmod(filename, currentStat | stat.S_IEXEC)
doing = "running installer"
s3_endpoint_part = ["--s3-endpoint", s3_endpoint] if s3_endpoint else []
return subprocess.call(["./" + filename] + sys.argv[1:] + ["--region", region] + s3_endpoint_part)
except:
# We have to retrieve exception info this way due to the need to remain
# compatible with both Python 2.4 and Python 3.6
etype, e, _ = sys.exc_info()
if etype is KeyboardInterrupt:
return -1
elif doing == "downloading installer":
failed_message = "Downloading of '{}'{}".format(
reading_url,
" from S3 Endpoint {}".format(s3_endpoint) if s3_endpoint else ""
) if reading_url else "Connection attempt to " + region + "on port 443"
# pylint: disable=line-too-long, superfluous-parens
print(
failed_message
+ """ failed.
This is usually caused by lack of routing to AWS, firewall configuration that block the connection (local or in a firewall appliance) or an incorrect web proxy configuration on this server.
Resolve the connectivity issue and run the installer again.
Learn more about connectivity issues in our documentation at """
+ DOCS_LINK
)
else:
print("Error " + doing + "! Please contact AWS Support at https://console.aws.amazon.com/support") # pylint: disable=superfluous-parens
print("Error details: " + str(e)) # pylint: disable=superfluous-parens
return -1
finally:
try:
os.remove(filename)
except:
pass
def check_free_space(required):
fs = get_fs(".")
return required <= int(fs.available) * 1024 # the fields are in 1024-blocks
def handle_noexec_tmp():
# get tempdir
tmpdir = tempfile.gettempdir()
# get mountpoint of tempdir
tmpfs = get_fs(tmpdir)
if not tmpfs:
return
mountpoint = tmpfs.mounted_on
# check fs flags for 'noexec'
flags = ""
f = open("/etc/mtab")
try:
lines = [l.split() for l in f.readlines()]
for line in lines:
if line[1] == mountpoint:
flags = line[3]
break
finally:
f.close()
if "noexec" not in flags:
return
# tmpdir is no noexec fs, use alternate tmp dir
alternate_tmpdir = "/var/lib/aws-replication-agent/.tmp_install"
if os.path.isdir(alternate_tmpdir):
shutil.rmtree(alternate_tmpdir)
os.makedirs(alternate_tmpdir)
for var in ["TEMP", "TMP", "TMPDIR"]:
os.environ[var] = alternate_tmpdir
def get_fs(directory):
"""
get filesystem data for a directory as in 'df -P' command and parse the result
:type directory: str
:rtype DF # namedtuple('DF', 'filesystem blocks used available capacity mounted_on')
"""
p = subprocess.Popen(["df", "-P", directory], stdout=subprocess.PIPE, stderr=subprocess.PIPE)
out, _ = p.communicate()
if p.returncode != 0:
return None
res = out.splitlines()[-1] # take the last line
return DF(*res.split())
if __name__ == "__main__":
parser = CustomOptionParser()
parser.add_option("--region")
parser.add_option("--s3-endpoint")
parser.add_option("--version", default=False, action="store_true")
opts, _ = parser.parse_args()
if opts.version:
print("AWS Replication Agent Installer version " + INSTALLER_VERSION)
sys.exit(0)
region = opts.region.strip() if opts.region else None
s3_endpoint = opts.s3_endpoint.strip() if opts.s3_endpoint else None
sys.exit(main(region, s3_endpoint))
